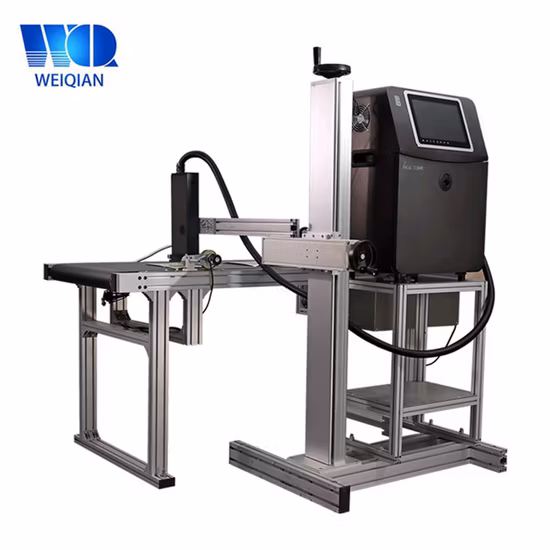

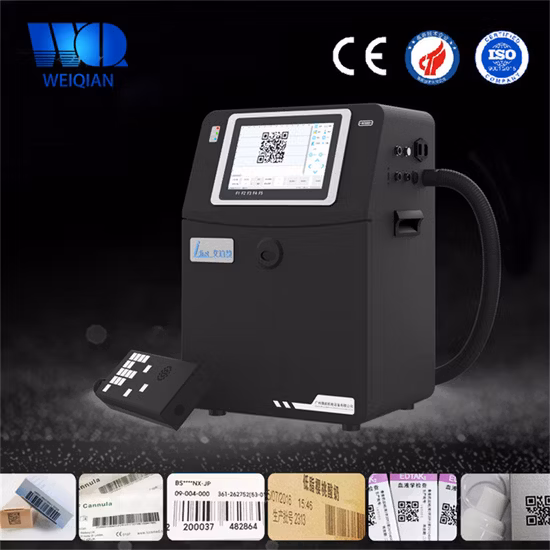

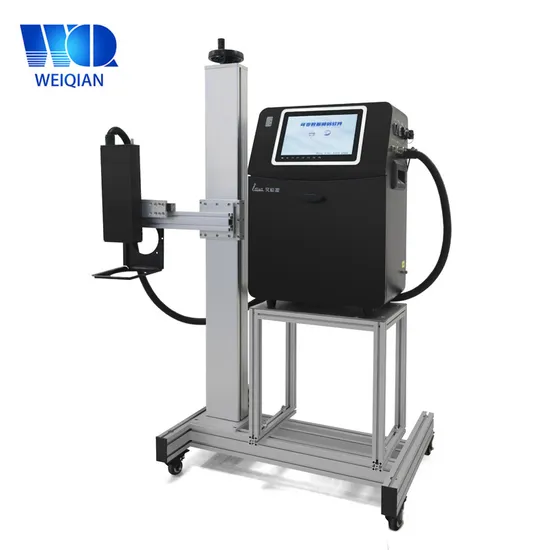

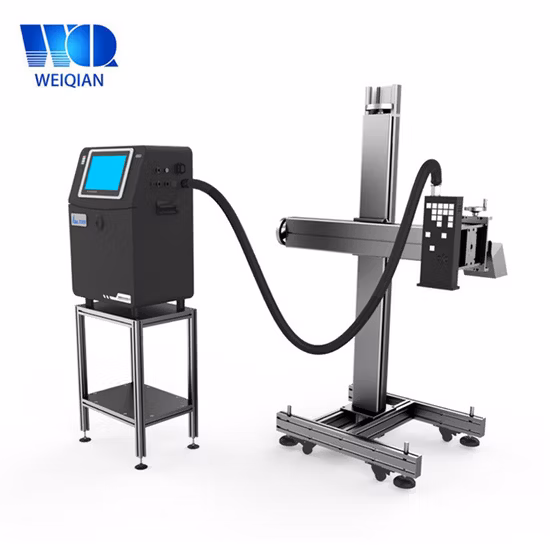

UV Inkjet Marking Printer Inkjet Code Machine Variable Printing Data System High Resolution Printer

Basic Info.

Model NO.	WQ-UV-W3600
Working Patterns	On-Line
Supplies	UV Ink
Packaging	Box
Customize	OEM
Certificate	CE
Specification	630*450*300mm
Trademark	Idjet /WEIQIAN LASER
Origin	China
HS Code	8443322100
Production Capacity	3500PCS/Year

Product Description

Main brands: WQ Laser, IdjetMain products: Automatic UV inkjet printer , Laser Marking Machine, Tracking and Testing systems and Consumables, etc.
UV Inkjet Marking Printer Inkjet Code Machine Variable Printing Data System High Resolution PrinterFunctional characteristics: System:Industrial Android SystemScreen:10.1 inch color screen,HD touch screen,What you see is what you getNozzle:Imports of industrial Piezoelectric nozzle,Support multi-head and splicing expansionInk supply:Intelligent electronically controlled negative pressure ink supply systemData: Online variable data printingMaintain:One-key maintenance functionExpand:Non-standard function customization and development

1.Parameters

Product model	Inkjet Coding Machine --W3600
Nozzle parameters	Nozzle type: all imported industrial piezoelectric nozzles Nozzle material: Based on piezoelectric materials (PZT) Maximum printing width: 36mm Number of nozzles: 512 Nozzle row spacing: 141µm Nozzle row number: double row Ink drop: 42Pl variable ink drop
Display screen	Size :10.1 inch
Touch screen	Capacitive touch screen
Hardware interface	USB2.0 interface RS232 interface Curing light interface Encoder interface Flip-flop interface
Defend degree	IP54
Working environment	Working temperature: 0 ºC-35 ºC Humidity:15%-75% Protection requirements: good grounding
Size	Structure: stainless steel housing Power supply: AC220V/50HZ System Power Consumption: Max Power Consumption 120W Equipment weight: about 30kg Machine size: 630*450*300mm
Technical specification	Nozzle life: 30 billion times of ink ejection Printing distance: 1mm-5mm( best 1-3 mm) Printing content length: 1.3m Printing speed: 0-50m/min Longitudinal accuracy of nozzle: 360dpi Horizontal accuracy of print head: 300dpi-1200dpi Movement method: from left to right Curing type: LED-UV curing
Features	Font library support: built-in a variety of commonly used font libraries, in addition to support font import function, users can import their own fonts. Input method: support Pinyin input method, handwriting input method, etc. Secondary development: the software provides interfaces to support secondary development. Material type: flat materials such as aluminum plate, ceramic tile, glass, wood, metal sheet, acrylic plate, plastic, leather,bags, cartons and etc. Applicable products: such as mobile phone displays, beverage bottle caps, food packaging bags, medicine boxes, plastic steel doors and windows, aluminum alloys, Gold, batteries, plastic pipes, steel plates, circuit boards, chips, woven bags, eggs, brake pads, mobile phone shell cartons, motors, transformers, water meter inner plates, gypsum boards, PCB circuit boards, outer packaging, etc. Printing content: The system supports printing one-dimensional bar codes, two-dimensional bar codes, drug supervision codes, traceability codes, databases,Variable text, picture, logo, date, time, batch number, class and serial number, etc. And can be smart lively design the layout, content, and printing position.

Transport and Packing process

By Sea and Air delivery is available.

Express (UPS,DHL,Fedex,EMS,etc) is available.
Delivery Time

Samples: 7 working days.
100PCS or More orders: 25 working days.
